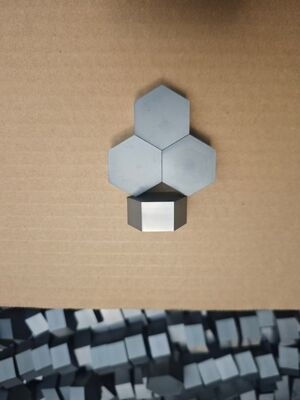

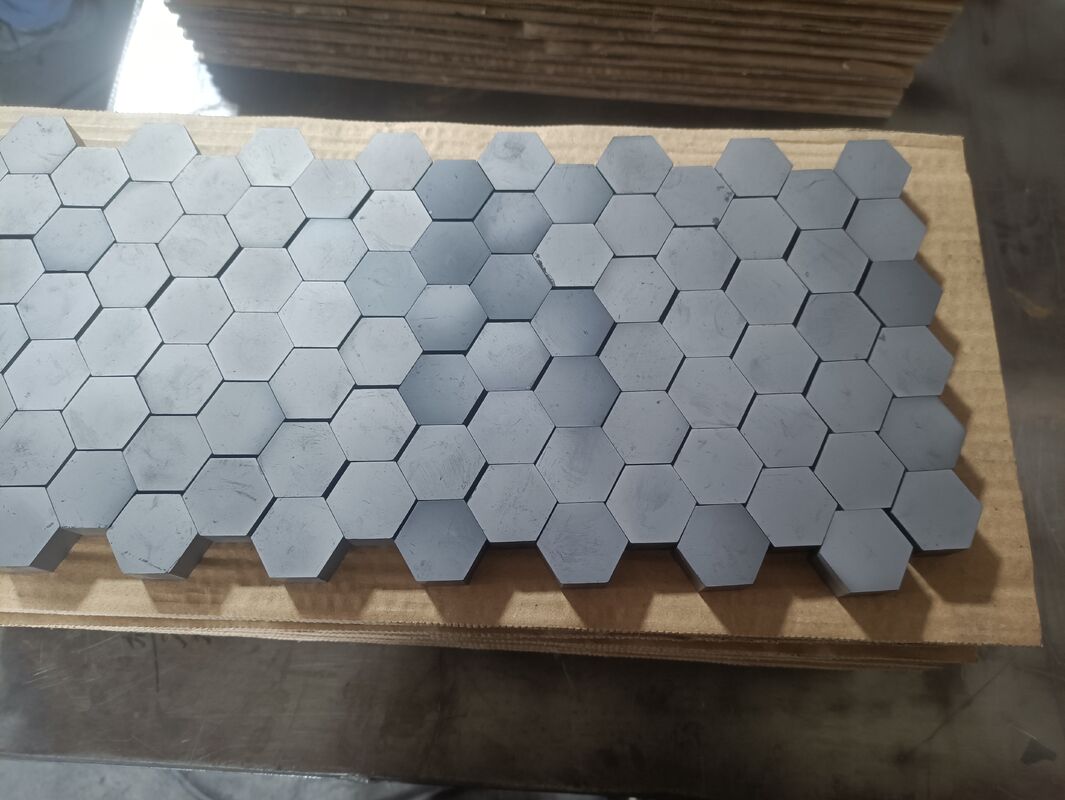

Cost Optimized Silicon Carbide Ballistic Tile NIJ Level III 100x100x8mm SiC Armor Plate
Detalhes do produto:
| Lugar de origem: | Hunan, China |
| Marca: | High Broad |
| Certificação: | ISO 9001:2015, NIJ 0101.06 |
| Número do modelo: | blocos de música |
| Documento: | SIC Ballistic Armor Tiles-P...ad.pdf |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 200kgs |
|---|---|
| Preço: | USD20.00-40.00/kg |
| Detalhes da embalagem: | Embalado a granel em bandejas de espuma EPE (25 peças por bandeja) + caixa de compensado para export |
| Tempo de entrega: | 5 a 7 dias úteis para estoque, 10 a 15 dias para produção |
| Termos de pagamento: | T/T, L/C, União Ocidental |
| Habilidade da fonte: | 80.000 peças por mês |
|
Informação detalhada |
|||
| Resistência à Flexão: | 350-420 MPa | Tamanho do ladrilho: | 100x100mm |
|---|---|---|---|
| Resistência à fratura: | 3,2-4,2 MPa·m½ | Grossura: | 8,0 mm |
| Densidade regional: | ≤36 kg/m² | Densidade: | 3,08-3,18g/cm³ |
| Destacar: | Cost Optimized SiC Tile,Bulk Supply Ballistic Ceramic,NIJ III Industrial Grade Plate |
||
Descrição de produto
NIJ Level III | Industrial Grade | High Volume Production | Competitive Pricing
- High Volume Capability
- 80k Pieces/Month
- Batch Consistency Guaranteed
Our cost-optimized industrial grade SiC tile is purpose-built for high-volume armor programs. By utilizing industrial-grade SiC feedstock and our high-throughput atmospheric sintering line, we have narrowed the price gap between SiC and Al₂O₃ to within 15-25%—while delivering 70% higher hardness and 15-20% lower areal density.
For programs currently specifying Al₂O₃ tiles, upgrading to our cost-optimized SiC means better protection with minimal budget impact. For programs using B₄C, it represents an opportunity to reduce ceramic material costs by 50-60% while maintaining protection integrity.
| Material | Approx. Cost/Tile | Cost per 1000 Units | Savings vs Al₂O₃ Hardness Bonus |
|---|---|---|---|
| HB SiC (CG Grade) | $12-$22 | $12,000-$22,000 | +70% Hardness |
| Al₂O₃ (Standard) | $10-$18 | $10,000-$18,000 | Baseline |
| B₄C (Hot Pressed) | $35-$60 | $35,000-$60,000 | 3x Cost |
Our dedicated SiC armor tile production line can deliver up to 80,000 standard tiles per month with 15-day lead time for production orders, ensuring reliable supply for large-scale programs.
Every production batch undergoes SPC monitoring of key parameters (density, hardness, dimensions). Certificate of Analysis (CoA) provided with each shipment for full traceability.
Industrial-grade SiC powder with controlled particle size distribution ensures consistent sintering behavior and mechanical properties across production batches—critical for certified armor programs.
Available in 25-tile EPE foam trays or custom packaging configurations. Vacuum-sealed moisture barrier bags available for long-term storage requirements.
Upgrade your armor program to SiC—request a volume quote today
Email: janehu@hbnewmaterial.com | Batch samples available for evaluation
