Silicon Carbide Hexagonal Ceramic Tile with NIJ Level III Protection 50mm Flat Hexagon Pressureless Sintered SiC
Detalhes do produto:
| Lugar de origem: | Hunan, China |
| Marca: | WNRLN |
| Certificação: | ISO 9001:2015, NIJ 0101.06 |
| Número do modelo: | blocos de música |
| Documento: | SIC Ballistic Armor Tiles-P...ad.pdf |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 100000 peças |
|---|---|
| Preço: | USD 0.1-1 / Piece |
| Detalhes da embalagem: | Bandeja de espuma EPE + saco selado a vácuo + caixa de madeira compensada de exportação |
| Tempo de entrega: | 5 a 7 dias úteis para estoque, 15 a 20 dias para produção |
| Termos de pagamento: | T/T, L/C, União Ocidental |
| Habilidade da fonte: | 5.000.000 peças por mês |
|
Informação detalhada |
|||
| Densidade: | 3,10-3,15g/cm³ | Dureza (GPa): | 24-27 |
|---|---|---|---|
| Resistência à Flexão: | 380-450 MPa | Tamanho do ladrilho: | Hexágono plano a plano de 50 mm |
| Densidade regional: | ≤34 kg/m² (matriz) | Resistência à fratura: | 3,5-4,5 MPa·m½ |
| Destacar: | Hexagonal SiC Ballistic Tile,Mosaic Array Strike Face,NIJ III Ceramic Protection |
||
Descrição de produto

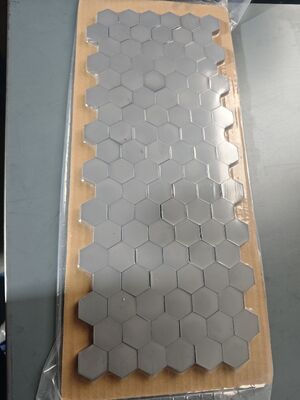

Silicon Carbide Hexagonal Ceramic Ballistic Tile Mosaic Array NIJ Level III Protection Strike Face 50mm Flat Hexagon
SiC Hexagonal Ceramic Ballistic Tile
Mosaic Array Strike Face | 50mm Flat Hex | NIJ Level III
✅ Optimal Packing Density ✅ Reduced Gap Coverage

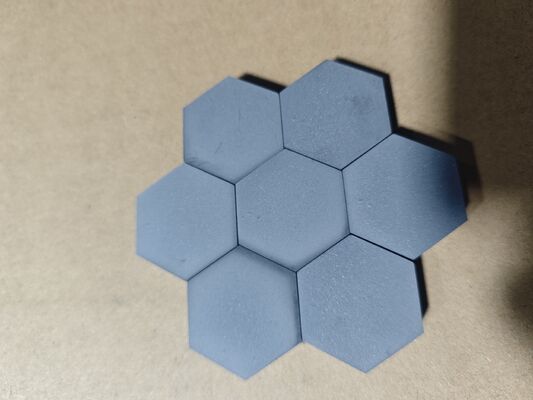

Why Hexagonal Geometry?
Traditional square tiles leave cross-shaped seams at every corner intersection—potential weak points. The WNRLN SC-50HEX-PS3 hexagonal tile distributes seam lines in a honeycomb pattern, eliminating continuous straight-line gaps. This geometric advantage provides 12-18% higher ceramic coverage density compared to equivalent square tile arrays. Each hex tile is precision-ground to ±0.2mm dimensional tolerance for consistent gap control in automated array assembly.
Hex vs Square: Coverage Density
Hexagonal tiles achieve ~90.7% geometric packing efficiency vs ~78.5% for squares of equivalent area, resulting in fewer vulnerable seam intersections and improved multi-hit resistance across the array.
SiC Hex vs B4C Hex: Cost
Atmospheric sintered SiC hex tiles cost 50-60% less than equivalent hot-pressed B4C hex tiles while delivering 90% of the ballistic performance. The ideal choice for cost-sensitive volume programs.
SiC vs Al2O3 Hex: Weight
At equivalent thickness, SiC hex arrays weigh 16-20% less than Al2O3 hex arrays. This weight saving compounds across larger panel assemblies for vehicle and personnel applications.
Seamless Multi-Tile Integration
Consistent edge chamfer (0.3mm x 45°) on all tiles ensures uniform adhesive bonding gap. Compatible with epoxy, polyurethane, and polysulfide adhesive systems for composite lamination.
Technical Specifications
| Material | Pressureless Sintered SiC |
|---|---|
| Shape | Regular Hexagon (Flat-to-Flat) |
| Flat-to-Flat Width | 50.0 ± 0.2 mm |
| Thickness | 8.0 mm (6-12mm optional) |
| Edge Chamfer | 0.3mm x 45° |
| Surface Finish | Ground (Ra ≤ 0.8μm) |
| Density | 3.10-3.15 g/cm³ |
| Hardness | 2500-2800 HV |
Order hexagonal SiC tiles for your mosaic array system today
Email: janehu@hbnewmaterial.com | Custom hex sizes and thickness available
