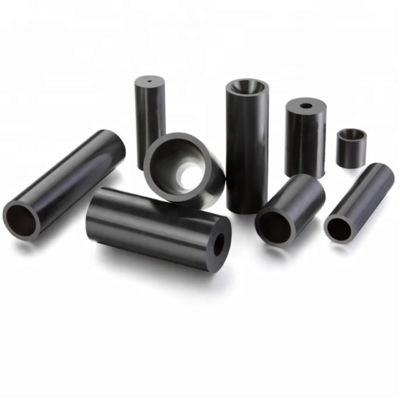

Acid Resistant Metal-Free Boron Carbide Sandblast Nozzle with Long Venturi 45x8mm for Ceramic Surface Treatment
Detalhes do produto:
| Lugar de origem: | Hunan, China |
| Marca: | High Broad |
| Certificação: | ISO 9001:2015 |
| Número do modelo: | HB-B4C |
| Documento: | Venturi nozzle Jane.pdf |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 10 peças |
|---|---|
| Preço: | USD 10.00 - 28.00 / Piece |
| Detalhes da embalagem: | Caixa individual forrada com espuma, papelão ondulado de qualidade para exportação com barreira cont |
| Tempo de entrega: | 3-5 dias úteis para estoque, 15-20 dias para produção |
| Termos de pagamento: | T/T, L/C, PayPal, Western Union |
| Habilidade da fonte: | 50.000 peças por mês |
|
Informação detalhada |
|||
| Tipo de bico: | Furo Venturi Longo | Tópico de conexão: | M16x1,5 |
|---|---|---|---|
| Diâmetro do furo: | 8mm | Comprimento do bico: | 45mm |
| Dureza: | ≥2800 Knoop (HK) | Pressão operacional máxima: | 0,8 MPa (116 PSI) |
| Destacar: | Acid Alkali Resistant Nozzle,Zero Metal Contamination Design,Pure Ceramic Sandblast Tip |
||
Descrição de produto
Key Advantages
Zero Metal Contamination
100% B4C ceramic body with no metallic components. Eliminates ferrous and non-ferrous contamination during blasting — critical for semiconductor, medical device, and aerospace component processing.
Acid and Alkali Resistant
Outstanding chemical inertness against acidic and alkaline environments. Performs reliably in wet blasting with chemical additives without material degradation.
Long Venturi Design
45mm extended venturi bore with 8mm diameter maximizes particle acceleration distance. Delivers superior blasting uniformity across large surface areas.
Ceramic Surface Ready
Optimized for ceramic, glass, quartz, and other brittle material surface treatments. Gentle yet effective abrasive flow preserves substrate integrity.
Technical Specifications
| Material | Boron Carbide (B4C) Ceramic |
| Nozzle Type | Long Venturi Bore |
| Bore Diameter | 8mm |
| Nozzle Length | 45mm |
| Metal Content | Zero (100% ceramic) |
| Chemical Resistance | Excellent acid/alkali resistance |
| Hardness | ≥2800 HK (Knoop) |
| Max Operating Pressure | 0.8 MPa (116 PSI) |
Applications
- Semiconductor wafer and component surface treatment
- Medical implant and surgical instrument finishing
- Ceramic and glass substrate etching and texturing
- Aerospace turbine blade coating preparation
- Precision optical component cleaning
