High Strength ZK60A T5 Magnesium Alloy Billet for Aerospace Applications and Helicopter Transmissions with Customizable Sizes
Detalhes do produto:
| Lugar de origem: | Hunan, China |
| Marca: | high broad |
| Número do modelo: | AZ31 AZ40 AZ80 ZK60 WE43 MNE21 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 100 |
|---|
|
Informação detalhada |
|||
| Composição química: | Mg Al Zn Mn | Material: | Metal do magnésio |
|---|---|---|---|
| Forma: | Bar bar bar billet | Tamanho: | 60-150mm |
| Tratamento térmico: | T5 | Resistência à tracção: | 306 MPa |
| Prova de estresse: | 234 MPa | Alongamento: | 8% |
| Diâmetro máximo: | 800mm | Comprimento máximo: | 8500mm |
| Conteúdo de ítrio: | 3,7-4,3% | Teor de gadolínio: | 0-1,9% |
| Conteúdo de Neodímio: | 20,0-2,5% | índice do zircônio: | 0,4-1,0% |
| Método de produção: | rolo quente, fundição, extrusão | ||
| Destacar: | Customizable Size Magnesium Alloy Billet,Aerospace Application ZK60A T5 Billet,Helicopter Transmissions Magnesium Billet |
||
Descrição de produto
High-performance magnesium alloy billet ZK60A T5 designed for use in demanding environments including vibration, dust, corrosive conditions, and high temperatures.
- WE43
- WE54
- WE94

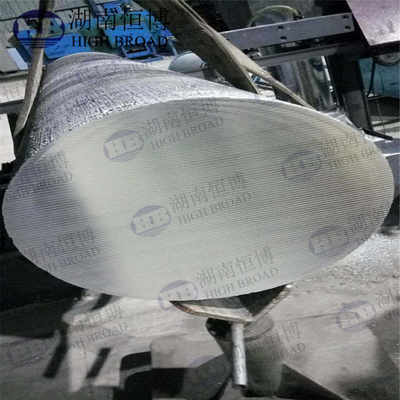

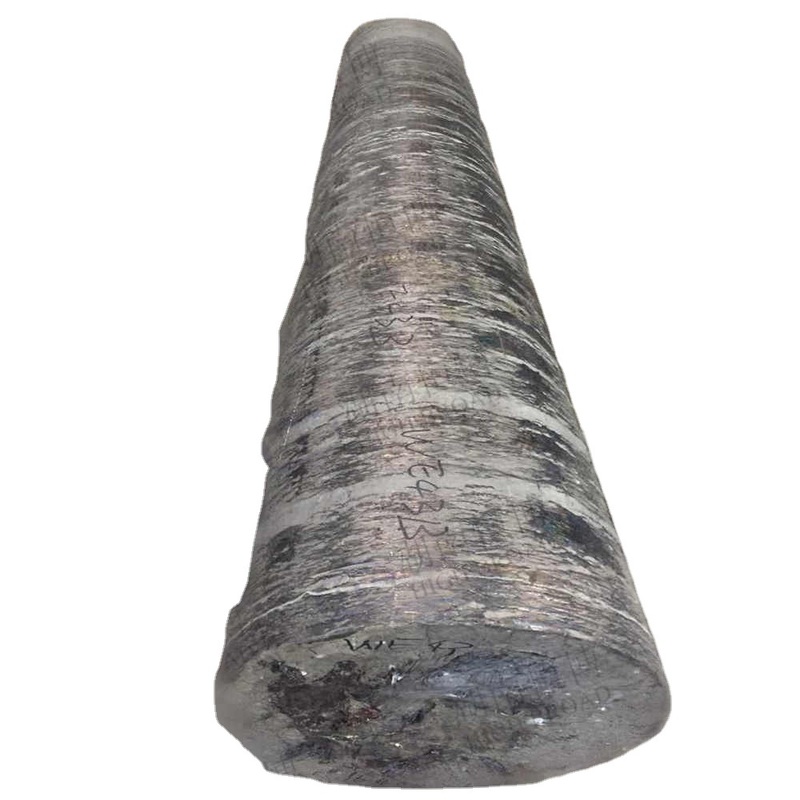

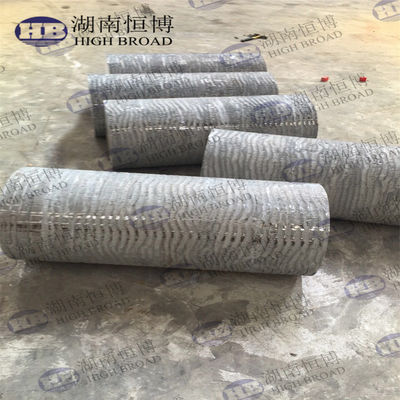

- Cast magnesium billets/bars
- Extruded magnesium billet/bars
- Rolling plate
- High strength magnesium alloys
Specially formulated for use in extreme conditions including vibration, dust, corrosive environments, and high temperatures up to 300°C (572°F).
WE series magnesium alloys (WE43, WE54, WE94) are magnesium-based alloys with Gadolinium, Yttrium, Zinc and Zirconium. These high strength casting alloys offer excellent mechanical properties and corrosion resistance for:
- Helicopter transmissions
- Power systems
- Aero-engines
- Sports cars
- Missiles
| Specification | Y | Gd | Nd | Zn | Zr |
|---|---|---|---|---|---|
| WE54 | 4.71-5.5 | 1.0-2.0 | 1.5-2.0 | - | 0.4-1.0 |
| WE43 | 3.7-4.3 | 0-1.9 | 2.0-2.5 | - | 0.4-1.0 |
| WE94 | 3.5-4.5 | 8.5-9.5 | - | 1-1.5 | 0.4-0.7 |
| Specification | Thermal Treatment Status | 0.25% Proof Stress (MPa) | Tensile Strength (MPa) | Elongation % |
|---|---|---|---|---|
| WE43 | T5 | 234 | 306 | 8 |
| WE54 | T5 | 205 | 280 | 4 |
| WE94 | T5 | 370 | 450 | 6 |
AZ80A, AZ91, AZ31B, ZM2, ZM3, ZM6, ZK60, MnE21
- Extruding
- Rolling
- Forging
- Complies with GB/T19078-2003 and ASTM standards
- Available shapes: round, D-shaped ingots, round bars, and plates
- Maximum dimensions: Diameter 800mm, Length 8500mm
On pallet
3-20 days after confirming order. Exact delivery date depends on production season and order quantity.
We have been producing various master alloys in China for over 10 years. Our product range includes:
- Magnesium master alloys
- Aluminum master alloys
- Rare earth alloys
- High performance Magnesium alloys
Our strong technical team can supply customized alloys according to customer requirements. Contact us for ICP machine test results and more information.
